Architectural Anchor Installation Examples

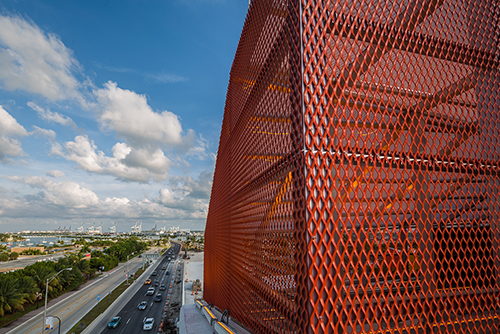

Expanded metal is an ideal material for use on building exteriors. It is very flexible, affordable customizable material that can create a wide variety of appearances and functions that turn building designs into works of art. Expanded metal is available in a large selection of patterns and lasting material that can withstand the rigor of exposure to weather, wind and other environmental challenges.
The downloadable documents will inspire and start the conceptual stage for attaching expanded metal panels, brackets or panel systems. Each drawing set highlights a different scheme. The drawings illustrate generic anchor systems and are not stock construction sets, only examples to attach substrates and other facades systems to building components.
Advantages in Using Expanded Metal
- Customizable shapes and patterns
- Wide variety of ascetics and design possibilities.
- Strengthen and support structure
For technical assistance, please contact one of our engineers!
