HERCULES WS8.0 Wide Strand

PART 1 GENERAL

1.1 SCOPE
A. Supply expanded metal panels utilizing the manufacturers’ standard materials.

1.2 MATERIAL APPLICATIONS

  • Facade
  • Railing Infill
  • Enclosures (Security)
  • Privacy Screens
  • Ceiling Tiles
  • Column Covers
  • Sun Shades

1.3 BASE MATERIAL OPTIONS

A. Aluminum Grade 3003
B. Aluminum Grade 5005 Anodize Quality
C. Alternative material types, thicknesses, and open areas available.
Contact Spantek’s representative for options.

PART 2 PRODUCTS

2.1 MANUFACTURER

A. Basis of Design:  Spantek Expanded Metal Locations: Hopkins, MN and Lincolnton, NC 800-828-7785

2.2 MATERIALS

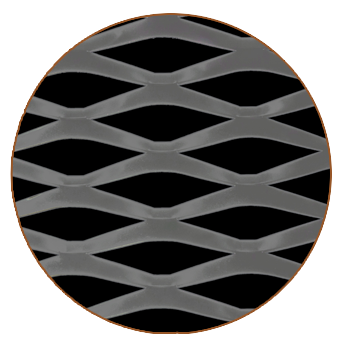

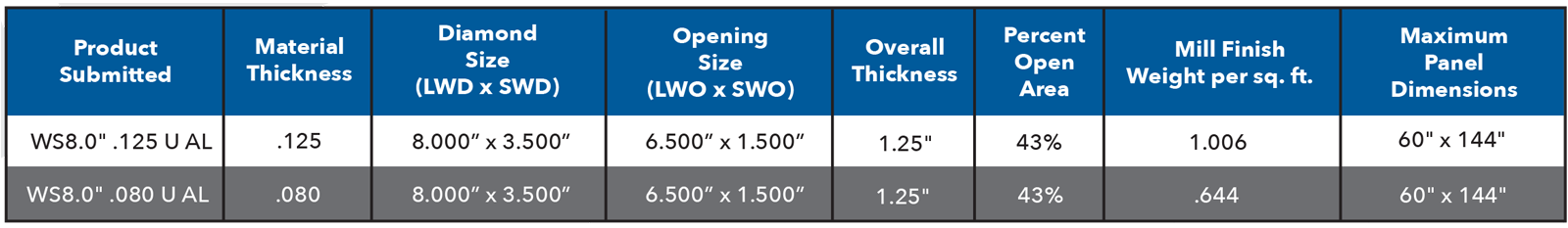

A. Mesh Description:  HERCULES WS8.0" .125 AL
B. Mesh Description:  HERCULES WS8.0" .080 U AL

2.3 FINISH SELECTION

A. Anodize
B. Power – Coat Paint
C. PVDF Finish
D. Other custom coatings

 Download Specifications HERCULES WS8.0" WIDE STRAND

 Anchor Installation Examples
